What Are Standard Pickleball Court Measurements for Accurate, Safe Play?
Court size, line widths, kitchen and service court measurements, net height and total space requirements for a properly built pickleball court.
Measurements Guide
Court size, line widths, kitchen and service court measurements, net height and total space requirements for a properly built pickleball court.
Pickleball courts are 20 feet wide by 44 feet long for both singles and doubles, with a 7-foot non-volley zone on each side of the net. The overall court footprint should be larger: at least 30 by 60 feet, and ideally 34 by 64 feet, for comfortable player movement.
A regulation pickleball court measures 20 feet wide by 44 feet long, totaling 880 square feet of playing area and unchanged for singles or doubles. Unlike tennis, pickleball doesn’t use narrower boundaries for singles play, so these measurements form the foundation for positioning every other feature: the kitchen, baselines, sidelines, service areas, centerline and net. Because players need room outside those marked boundaries during rallies, a practical total footprint runs about 30 by 60 feet for many backyard and recreational courts, or 34 by 64 feet for competitive players, clubs, schools and larger properties.
The right overall footprint depends on your available property and how competitively the court will be used, so Dink Pro Courts starts every project with a precise site measurement before recommending a layout.
Baselines run across each end of the 44-foot playing area, sidelines run the full length 20 feet apart, and the centerline splits each side into two service courts about 10 feet wide. Court lines are typically 2 inches wide and should contrast clearly against the surface. Even small measurement errors here can affect serving, scoring and gameplay.
The non-volley zone lines sit 7 feet from the net on each side, making every kitchen 7 feet deep by 20 feet wide, with both zones together spanning 14 feet across the middle of the court. Players can’t volley the ball while standing inside this zone or touching its boundary line, which is exactly why precise kitchen measurements matter so much during striping.

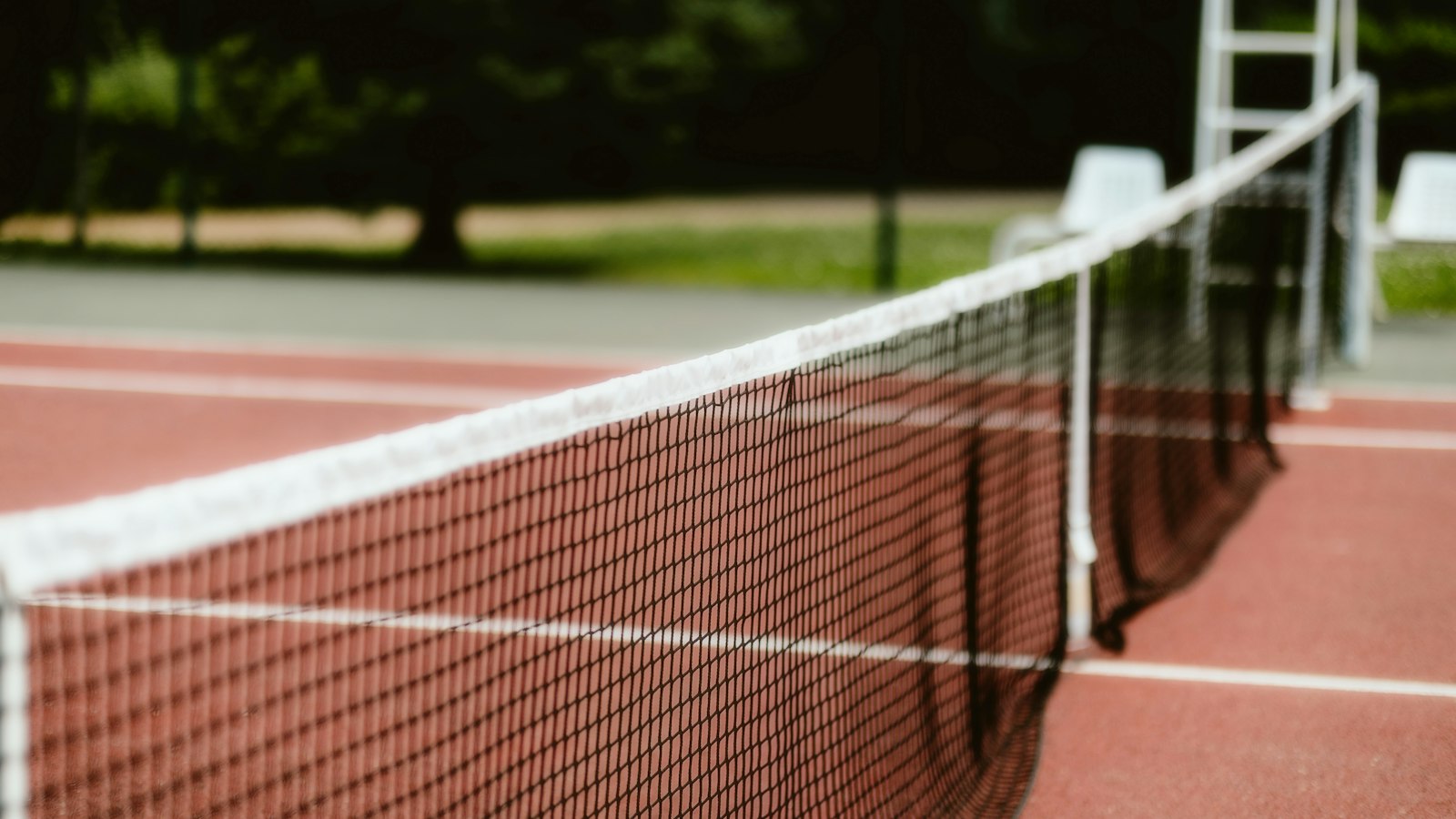

The net stands 36 inches high at the sidelines and 34 inches at the center, with net posts positioned precisely so the net lines up with the court’s boundaries. Players frequently cross the baseline to serve or return deep shots, so a properly centered 30-by-60-foot court gives roughly 8 feet of clearance beyond each baseline, while a 34-by-64-foot court gives roughly 10 feet. Side clearance matters just as much, since angled shots often pull players beyond the 20-foot playing width and into space that also needs to fit fencing, light poles and benches.
Contact Dink Pro Courts to discuss your available area, court measurements, surface selections, fencing, lighting and custom installation requirements.
A full regulation 20-by-44-foot playing area is the best choice when your lot fits it, and it’s the surrounding clearance that flexes first. If the full court won’t fit, the Mini Court Game Center is a smaller concrete court built for tighter yards.
Aim for the standard 20×44 ft playing area and adjust the runoff space around it first; a mini court is the smaller option when even that won’t fit.
Boundaries, house location, pools, patios, trees and utility lines all shape how much runoff space fits.
Less runoff can limit deep returns, angled shots and repositioning after serves.
A professional site visit finds the best achievable layout for your specific property.
Dink Pro Courts verifies precise pickleball court measurements before construction begins on every project throughout Maricopa County, from backyard courts to multi-court commercial facilities.
A roughly north-south orientation is often preferred outdoors to reduce players facing directly into low sun, though lot shape, structures, trees, drainage and access can all shift the ideal direction for a given property. Fencing needs its own measurement plan too, since placing it too close to the playing lines cuts into the space players need to move. Its design should account for baseline clearance, sideline clearance, gates and ball containment together. Lighting works the same way: poles need enough room that players won’t run into them, while still delivering even, glare-free coverage across the whole surface.
Before excavation or surfacing starts, it’s worth verifying: total available property area, court width and length, baseline and sideline clearance, kitchen and net position, fence and gate location, lighting clearance, and drainage direction. Confirming these measurements up front helps avoid expensive changes once construction is underway, especially in Arizona where heat, sun exposure, seasonal rainfall and temperature swings put extra demands on outdoor court preparation.
Official pickleball court measurements are 20 feet wide by 44 feet long for both singles and doubles.
A total area of approximately 30 by 60 feet works for many recreational courts, while approximately 34 by 64 feet provides additional player clearance.
The kitchen extends 7 feet from the net on each side and is 20 feet wide.
Pickleball court lines are generally 2 inches wide and should clearly contrast with the playing surface.
The net should be 36 inches high at the sidelines and 34 inches high at the center.
No. Both singles and doubles use the same 20-by-44-foot court.
A regulation playing area is 20 by 44 feet, and an overall area of approximately 30 by 60 feet or larger is preferable for better player movement. If a yard cannot fit a full court, Dink Pro Courts also builds smaller concrete mini courts through its Mini Court Game Center.
Yes. Dink Pro Courts can assess available space, site conditions, drainage, access, fencing, lighting, and intended use to help determine a suitable court layout.
